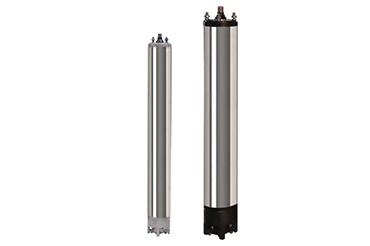

Submersible Motors
SUBMERSIBLE MOTORS
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | ADAPTOR | STAINLESS STEEL / CI |
| 2 | UPPER HOUSING | STAINLESS STEEL / CI |
| 3 | BEARING BUSH | CARBON |
| 4 | STATOR | STAMPING-CRNO M-47 WITH C6 COATING, PIPE-STAINLESS STEEL |
| 5 | ROTOR | SHAFT-STAINLESS STEEL STAMPING-CRNO M-47 WITH EPOXY POWDER COATING |
| 6 | LOWER HOUSING | STAINLESS STEEL / CI |
| 7 | T-BOLT | CARBON STEEL WITH EN8 GRADE POWDER COATING |
| 8 | THRUST BEARING | CI / CARBON WITH COATING |
| 9 | MOTOR BASE | STAINLESS STEEL / CI |
| 10 | DIAPHRAGM | NITRILE RUBBER |
| 11 | MOTOR BASE PLATE | STAINLESS STEEL / CI |
| 12 | FASTENERS | STAINLESS STEEL / SS-304 & 316 |
